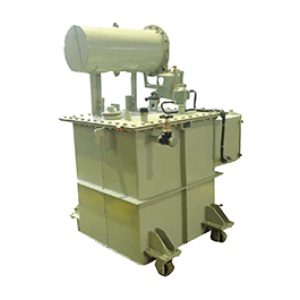

Transformer for ESP
Environment
- Ambient Temperature: 0 – 50°C
- Storage Temperature: 0 – 70°C
- Duty: Continuous Operation
- Installation: Indoor
Mains Requirements
- Nominal input voltage Variations: 120 – 230 VAC, 50/60 Hz, 1F (to SMPS)
- Frequency Variation: ±5%
- Current: 0.3 A
- Power: 20 VA
Feedback for Operation
- Output Current Feedback: 1 VDC at rated mA Average
- Output Voltage feedback: 400μ ADC at rated kV (Peak) (VDC)
- Primary Current Signal: 100 mA AC
- Primary Voltage Signal: 0 -10 VAC for system input
- Digital Inputs: 16 Optically Isolated Contacts
- Digital Outputs: 09 digital outputs
- Serial Interface for: RS -485 / RS – 232
- Communication: CAN BUS for Display Interface
