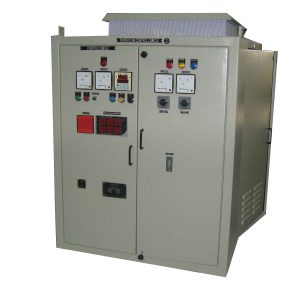

Pulse Thyristor Rectifier

A low voltage high current DC power supply with oil cooled regulator and oil cooled transformer.

BRIEF SPECIFICATION
  • Input : 415V±10%
  • DC Output: 80V
  • DC Current: Upto 10 kA
  • l Current Control Range : 20-100%
  • Rating Class ‘B’ of IS 4540
  • No of Pulse : 6 ( Single Way Bridge )
  • FN cooled Dry Type Transformer & Thyristor Rectifier
FEATURES
  • 6/12/24 pulse configuration
  • Current / Voltage stability: < ± 1%
  • Standards: IS / IEC
  • Transformer Cooling : Air Cooled / ONAN
  • Rectifier Cooling: Air cooled / Forced Air Cooled
  • Efficiency: Upto 95%
