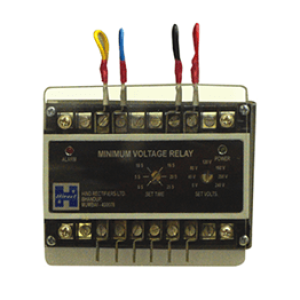

Minimum Voltage Relay
- Input sense Voltage: 240 VAC ±10%, 50-60Hz
- Adjustment of input values: Setting Range available from 0 to 240 V, Where Un = 200V
- Auxiliary Supply: Nominal : 48 VDC Operating range (36 V to 68 VDC)
- Supply Rated Burden: Supply Rated burden 3W
- Maximum Value of Harmonics
on Input: Less than 5%
- Adjustment Delay Time: Setting range available from 0 to 25 sec 0.2 sec.
- Reset Time: 2 No and 2 NC isolated contacts. Suitable for Fastons 6.3 x 0.8 mm
- Contacts: AC : 220 VAC / 5A and DC : 110 VDC / 0.5A
- Contacts Rating: Green – Power ON & RED – Alarm.
- Electrical Contacts Life> 1 lakh operations
- Ambient Operating Temperature-20°C to 70°C
- Weight300 gms
