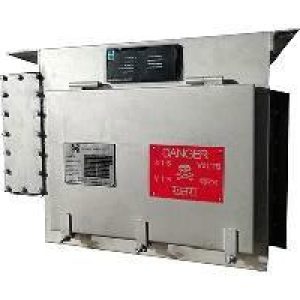

4.5KW Regulated Battery Charger

Input Data

  • Nominal Voltage: 350 VAC to 480 VAC for RBC and 190 VAC to 280 VAC for EBC
  • Minimum Working Voltage: 350 VAC
  • Working Frequency: 50 Hz ± 3%

OutputData–1

  • Power for RBC: 4.5kW
  • Output Voltage: 110V – 135VDC (Selectable through user friendly keypad)
  • Output Current: 10A – 15A for Battery charger (Selectable through User Friendly Keypad) and  20A for other load

OutputData–2

  • Power for RBC: 2.5kW
  • Output Voltage: 104V – 118V
  • Output Current: 22.0A
  • Over load: 25A for 60sec

Mechanical Data

  • Weight of Unit: 110kg
  • Mounting Size: Under Slung
  • Cooling : Length: 900mm, Depth – 600mm, Height – 650mm
  • Special Feature: Natural
  • Auto Battery Discharging: Battery can be discharge automatically, depends on selection through keyp
  • Earth leakage Monito:Earth leakage current factory settable and monitor for both +Ve and-Ve  Terminal
  • Keyboard and Display : User friendly keyboard & Display for setting and calibration.
