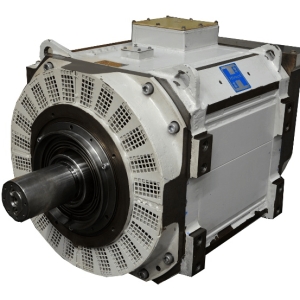

3 PHASE TRACTION MOTOR 6FRA6068

  • Parameters Rated Point Maximum Point
  • Power 850kW 850kW
  • Stator Frequency 65 Hz 132Hz
  • Motor Voltage (phase to phase) 2180V 2180V
  • Stator Current 270A 393A
  • Torque 6330 N-m 9200 N-m
  • Motor speed at shaft 1283 rpm 2584 rpm
  • Connection Type Three Phase Star
  • of Poles 6
  • Insulation Class 200
  • Cooling Type Forced Ventilation
  • Motor Weight (Bare) 2100 kg ±
