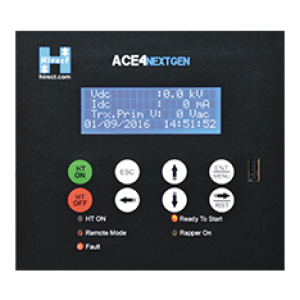

Electro Static Precipitator Transformers With Compact Controllers

General Specifications
  • Input Voltage: 415 Volts AC
  • Phase: Single / Three
  • Voltage Variation:±10%
  • Frequency: 50 Hz
  • Output Voltage: Single / Three ,30 kV – 200 kV DC Peak Mid Frequency ,30 kV – 120 kV DC Peak
  • Current: 40 mA – 2500 mA DC Mean
  • Current Regulation: ±5% for load variation full load
  • Configuration: Single Phase , Single phase back to back connected ,Silicon controlled Rectifiers (SCRS) Three Phase ,Three phase back to back connected Silicon controlled Rectifiers (SCRS) Mid Frequency, 3 phase diode bridge Rectifier with IGBT “I” Bridge Inverter
  • Method Of Control: Single / Three By means of silicon-controlled Rectifier (SCRs),Mid Frequency By means of insulated gate Bipolar Transistor (IGBTs)
  • Ambient Temp.: 50°C Maximum
  • Installation preferably: Electronic Controller Suitable for indoor installation only Preferably in Air – Conditioned Room. Transformer Rectifier Unit Suitable for indoor / Outdoor installation.
  • Atmosphere: Dusty
  • Cooling: Transformer Rectifier Oil cooled, Electronic Controller Air
  • Scope of Supply: Transformer Rectifier Unit Electronic Controller Panel
